Solar AC+DC Pump - 3000w, 225m Head - A/D-4SPW2-17P

Product Title:

Hybrid Solar AC/DC Borehole Pump – 3000W, 225m Head – A/D-4SPW2-17P

Short Description:

High-lift 3000W hybrid solar borehole pump with 225m head. Operates on both AC and DC power sources for uninterrupted deep well water supply.

Full Description:

The A/D-4SPW2-17P is a powerful hybrid solar submersible pump designed for deep borehole applications requiring high lift and consistent water flow. Rated at 3000W, this pump reaches a maximum head of 225 meters, making it ideal for agricultural, commercial, and remote installations. Capable of running on both solar (DC) and grid/generator (AC) inputs, it ensures reliable water delivery under all conditions. Built with intelligent protection and control features in accordance with manufacturer terms and conditions.

• Model: A/D-4SPW2-17P

• Power Rating: 3000W

• Max Head: 225 meters

• Input Type: AC + DC Hybrid (Solar panels, utility grid, or generator)

• Pump Diameter: ~4 inches (standard 4SP borehole design)

• Applications: Deep well water pumping for irrigation, industrial, municipal, and rural supply

• Material: High-grade stainless steel body and impellers

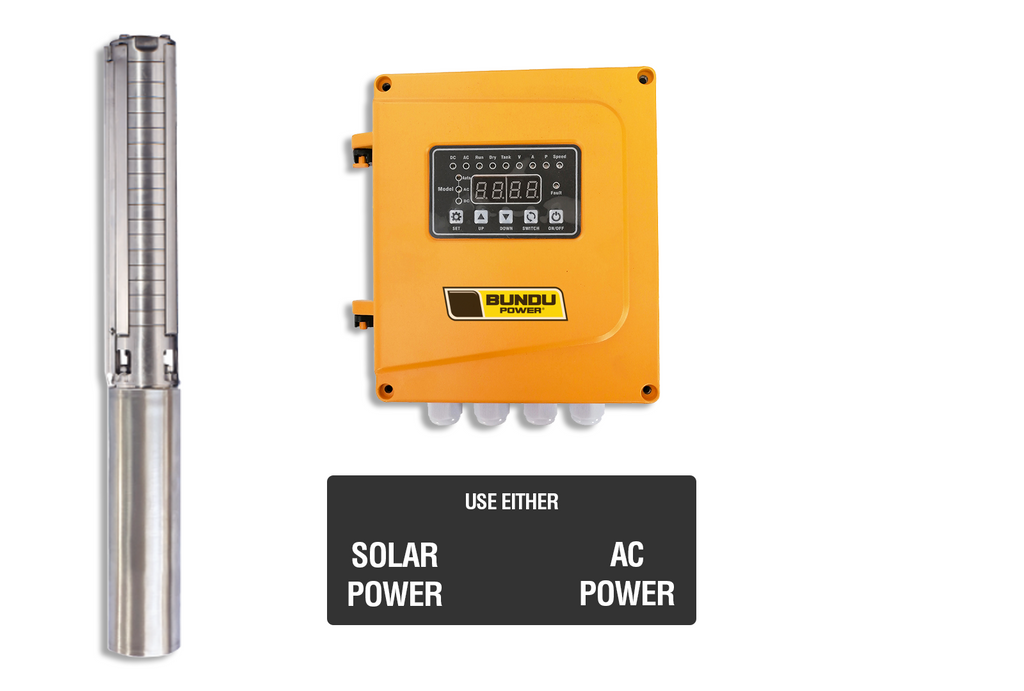

• Controller: Hybrid smart controller (auto-switching between AC and DC)

• Protection Features: Dry-run, overload, over-voltage, over-temperature, soft start (as per T&Cs)

• Warranty: Subject to manufacturer’s terms and conditions

Estimated Weight:

Approx. 28 – 35 kg (including pump and controller)

EXCLUDES SOLAR PANELS
