Solar Borehole Pump – 100m Head, Up to 14 m³/h, 4-Inch Submersible

Product Description:

The JCS4-14-100 Solar Borehole Pump is a high-performance 4-inch submersible pump designed for reliable water extraction from depths of up to 100 meters. With a power rating of 2,200W and operating at 216V, this model delivers high flow output and is ideal for off-grid irrigation, livestock watering, and domestic water supply.

Built with corrosion-resistant materials and a long-life brushless motor, it is suitable for solar-powered systems when installed according to the manufacturer’s terms and conditions (T&Cs)—including the use of proper MPPT controllers or inverters.

Specifications:
• Model: JCS4-14-100
• Max Head: 100 meters
• Voltage: 216V DC
• Power: 2200W (2.2kW)
• Pipe Size: 4-inch

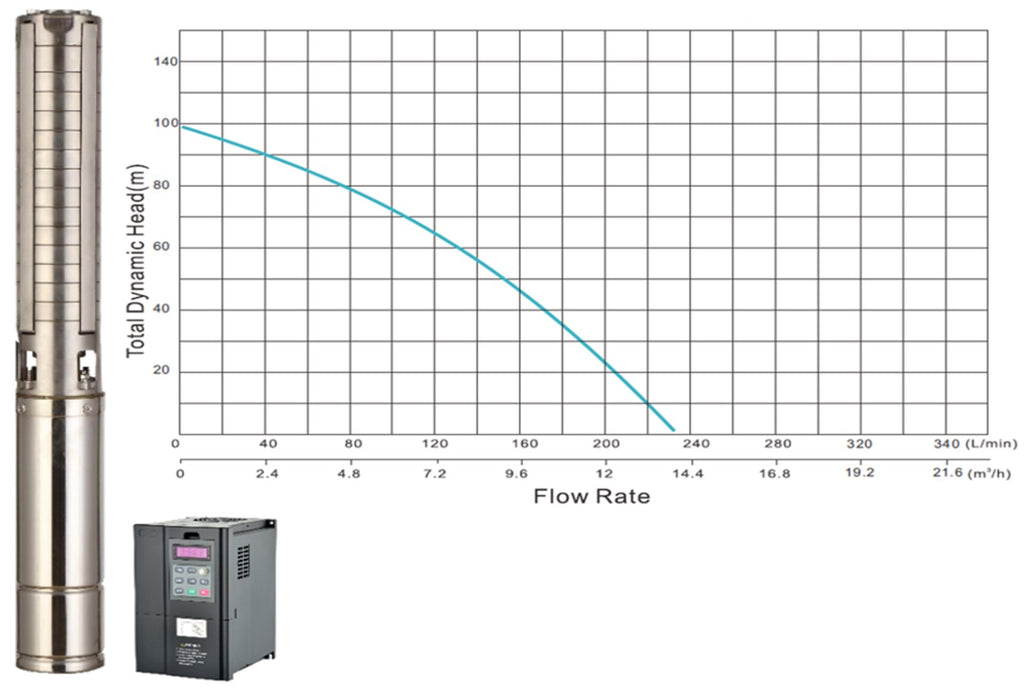

• Flow Rate: ±14 m³/h (site-dependent)

Key Features:
• Durable stainless steel pump body for longevity
• Brushless DC motor for efficient, quiet operation
• High water volume output with deep head capability
• Solar compatible (MPPT/VFD required)
• Must be installed as per T&Cs to maintain warranty

Applications:
• Agricultural and commercial irrigation
• Remote borehole water extraction
• Off-grid and hybrid solar pump systems

Approximate Weight:

24 – 28 kg
