3 String combiner Box SURGE PROTECTION & FUSES - T0003563

Product Title:

3-String Combiner Box with Surge Protection & Fuses – T0003563

Short Description:

Pre-wired 3-string solar combiner box (T0003563) with integrated DC fuses and surge protection. Ideal for small to mid-sized PV installations.

Full Description:

The T0003563 is a high-quality, pre-assembled 3-string combiner box designed to safely consolidate multiple solar PV inputs into a single output. It includes integrated DC fuses for each string and a surge protection device (SPD) to guard against voltage spikes caused by lightning or grid disturbances. Suitable for residential or commercial solar systems, this combiner box simplifies wiring, enhances protection, and ensures code-compliant installations.

• Model: T0003563

• Input Strings: 3 independent PV strings

• Output: 1 combined DC output

• Protection:

  • Fuses: DC-rated fuse holders (typically 15A–20A, replaceable)

  • Surge Protection: Integrated SPD (typically Type 2)

• Voltage Rating: Up to 1000V DC (verify for specific configuration)

• Enclosure:

  • Weatherproof, IP65-rated (indoor/outdoor use)

  • UV-resistant plastic or powder-coated metal

• Wiring: Pre-wired or ready-to-wire (depending on version)

• Mounting: Wall mountable, DIN rail internally

• Applications:

  • Rooftop or ground-mounted PV systems

  • Residential or small commercial solar arrays

  • String-level overcurrent and lightning protection

• Compliance: IEC/EN and SABS compliant (where applicable)

Estimated Weight:

Approx. 3 – 4.5 kg

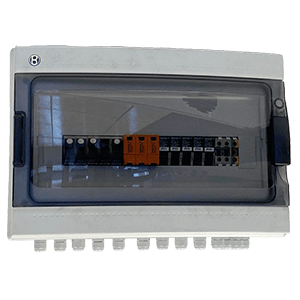

IMAGE FOR ILLUSTRATION ONLY
