Solar Borehole Pump – 145m Head, Up to 14 m³/h, 216V / 3000W, 4-Inch Submersible

Product Description:

The JCS4-14-145 Solar Borehole Pump is a powerful 4-inch submersible pump engineered to deliver water from depths of up to 145 meters. Operating at 216V and 3000W, this model is ideal for high-demand water supply needs such as agriculture, commercial irrigation, and off-grid borehole systems.

Built with a durable stainless steel body and high-efficiency motor, this pump provides excellent flow and performance when used as per manufacturer terms and conditions (T&Cs). Proper use of a compatible MPPT controller or inverter is essential for optimal performance and warranty protection.

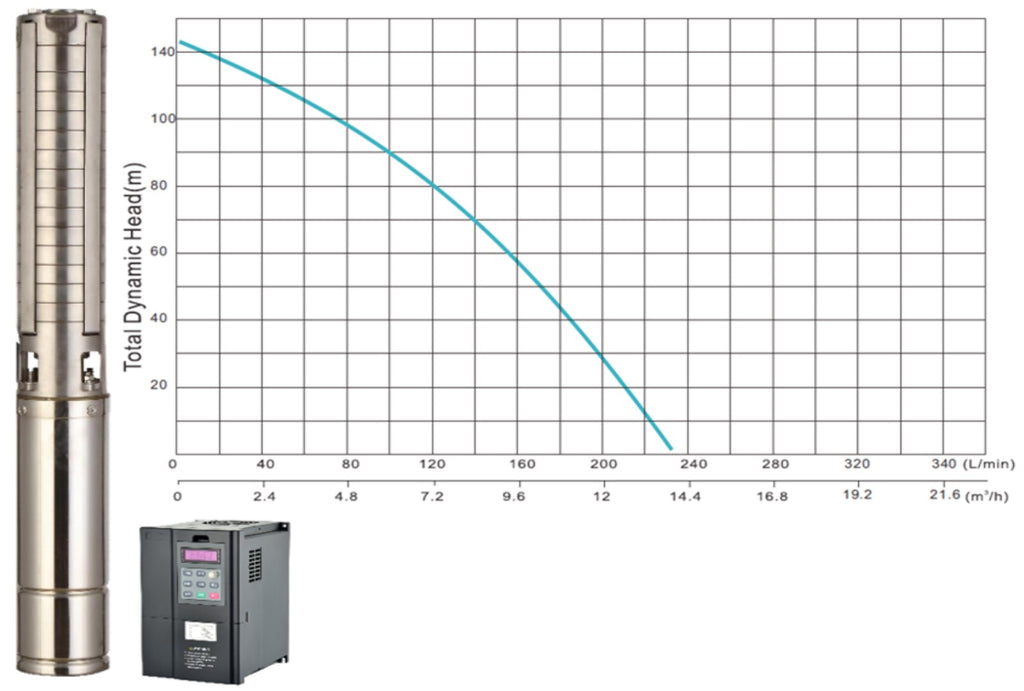

Specifications:
• Model: JCS4-14-145
• Max Head: 145 meters
• Voltage: 216V DC
• Power: 3000W (3kW)
• Pipe Size: 4-inch
• Flow Rate: ±14 m³/h (site dependent)

Key Features:
• Designed for deep borehole and solar-powered systems
• Robust stainless steel construction
• Brushless motor for quiet and efficient operation
• Compatible with MPPT controllers or VFDs
• Must be installed and operated as per T&Cs for warranty coverage

Applications:
• Deep water extraction for irrigation and livestock
• Remote or off-grid water supply
• Solar borehole installations for commercial and agricultural use

Approximate Weight:

28 – 32 kg
