Solar Borehole Pump – JCS4-14-180 | 180m Head, 4kW, 4-Inch, 380V

Comprehensive Product Description:

The JCS4-14-180 Solar Borehole Pump is a 4-inch, high-power submersible pump engineered for deep water extraction up to 180 meters. Operating at 380V and delivering 4,000W (4kW) of power, this pump is ideal for heavy-duty water supply applications in agriculture, commercial irrigation, and large-scale borehole projects.

It must be used as per terms and conditions outlined by the supplier, including voltage compatibility and control system requirements (e.g., MPPT or VFD controllers).

Specifications:
• Model: JCS4-14-180
• Max Head: 180 meters
• Power: 4,000W (4kW)
• Voltage: 380V (3-phase)
• Pipe Size: 4-inch

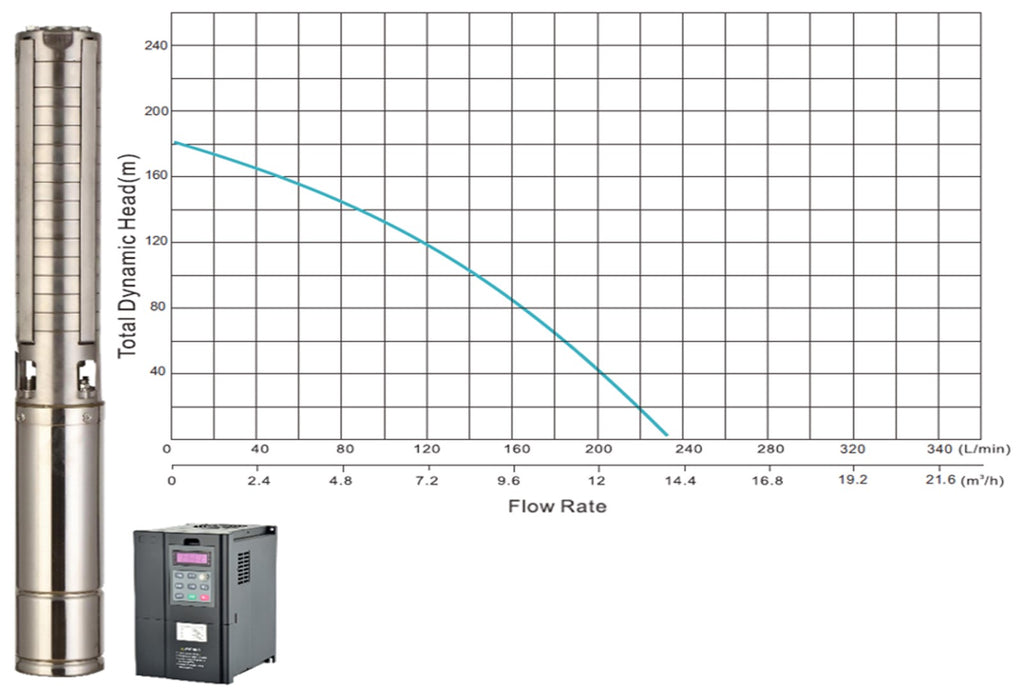

• Flow Rate: ±14 m³/h (depending on conditions)

Key Features:
• Designed for deep borehole applications
• Durable stainless steel construction
• High-capacity brushless motor for long service life
• Compatible with solar and hybrid systems via MPPT or inverter control
• Must be installed as per manufacturer T&Cs for warranty validity

Applications:
• Commercial farming and irrigation
• Municipal and rural water delivery
• Deep well and borehole systems
• Solar-powered or hybrid water systems

⚖️ Approximate Weight:

35 – 40 kg
